Aquarium UV-C: How to Choose, Use and Install It Safely

UV-C is commonly added to aquariums, ponds and larger filtration systems to improve water clarity and reduce microorganisms moving through the water.

But choosing a UV-C unit by wattage alone tells us surprisingly little.

A 9-watt UV-C running at the wrong flow rate may achieve less than expected. Two UV-C units with the same wattage can also perform differently because their chambers, lamps and water paths are different.

And with exposed UV-C lamps, installation is not only about effectiveness. It becomes a matter of safety for the aquarist, livestock, biological media and surrounding equipment.

The useful question is therefore not simply:

“How many watts of UV do I need?”

It is:

“What UV dose is actually reaching the water, and what am I trying to achieve?”

What Does UV-C Actually Do?

UV-C is short-wavelength ultraviolet radiation. Germicidal UV-C can damage the genetic material of microorganisms exposed to a sufficient dose, preventing them from reproducing normally.

In an aquarium, UV-C is commonly used to help:

• control suspended green-water algae;

• reduce free-floating bacterial populations;

• improve water clarity;

• reduce susceptible waterborne microorganisms passing through the UV unit.

The important words are passing through.

An enclosed UV steriliser does not irradiate the whole aquarium. It treats the water that travels through its chamber.

This means UV-C cannot directly remove algae growing on rocks or aquarium glass. It does not remove detritus. It does not replace biological filtration, and it should not be considered a direct cure for an already infected fish.

Think of it as a treatment point within the circulation system, not something that sterilises everything inside the aquarium.

The Main Types of Aquarium UV-C

UV-C products come in several forms. The basic principle is similar, but how they expose water to UV-C can be very different.

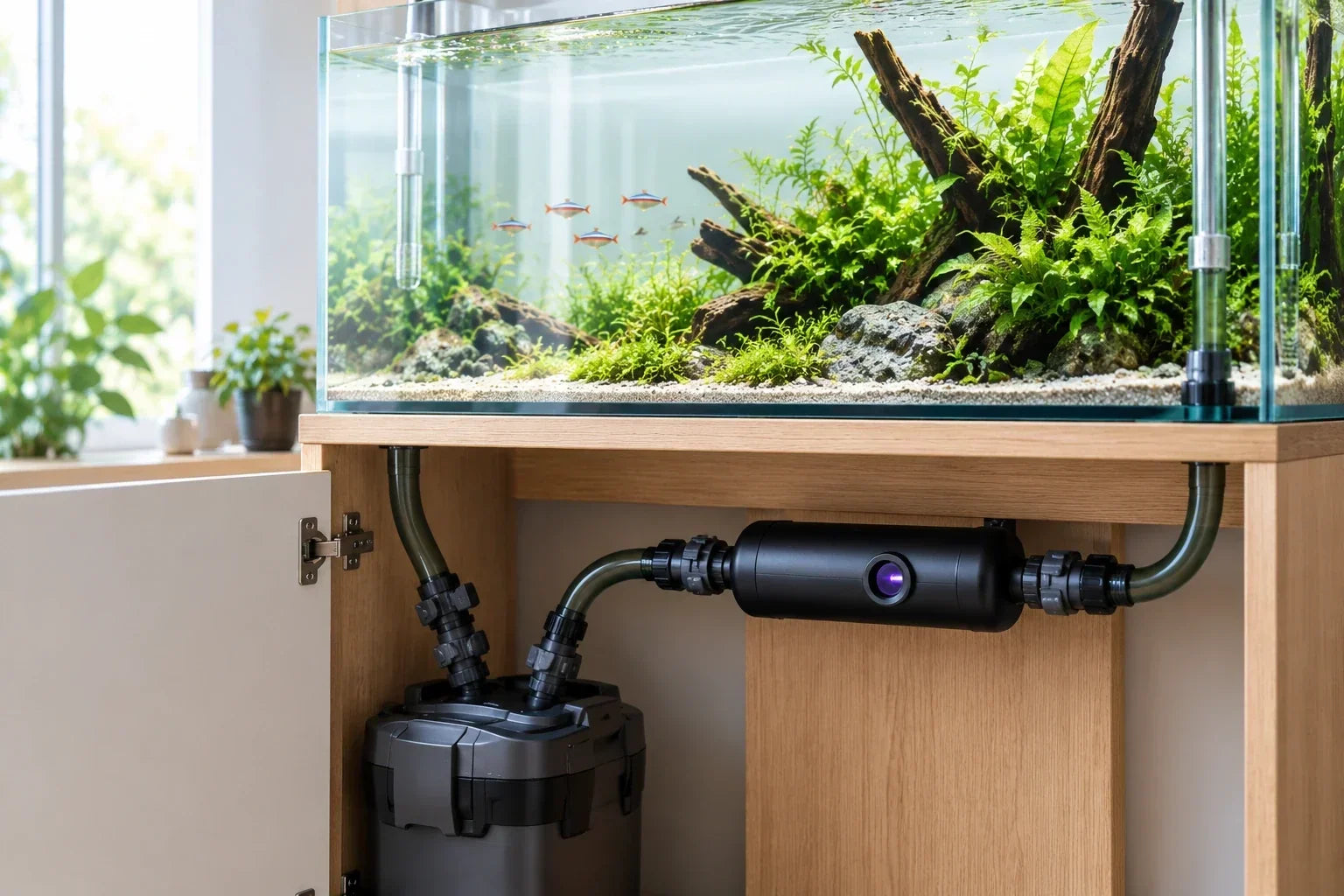

Enclosed Inline UV-C

This is one of the most familiar aquarium designs.

Water enters an enclosed chamber, passes around or alongside a UV-C lamp protected by a quartz sleeve, and returns to the aquarium.

The enclosure keeps UV-C contained while controlling the distance and path of water around the lamp.

UV-C Integrated Into a Filter

Some canister filters, internal filters and other filtration systems have UV-C incorporated into the equipment.

These can be convenient because the pump and UV system are already combined. However, their effectiveness still depends on UV output, water path, flow rate and chamber design.

Exposed or Submersible UV-C

These use a bare or partially shielded UV-C tube inside a sump or filtration compartment.

They can provide strong irradiation without requiring a separate inline chamber, but installation requires much greater care because anything directly exposed to the lamp can receive UV-C radiation.

Pond UV Clarifiers

Pond systems are commonly larger and designed to handle greater flow. Many are primarily selected for controlling suspended algae and green water.

They are still UV-C systems, but a high maximum flow rating should not automatically be interpreted as providing the UV dose required for every microorganism.

Commercial and Large-System UV-C

Aquaculture facilities, large marine systems, public aquaria and recirculating systems may use larger UV units where flow, UV intensity and target dose are more precisely specified.

These systems demonstrate an important principle that also applies to our home aquariums:

UV performance is about dose—not simply lamp wattage.

Why Wattage Alone Is Not Enough

Imagine two UV-C units, both labelled 18 watts.

One has a long chamber that keeps water close to the lamp.

The other has a different chamber diameter and water path.

Run both at the same pump flow and the organisms travelling through them may not necessarily receive the same UV exposure.

Several things influence the actual treatment:

UV-C output + chamber design + distance from the lamp + exposure time + water clarity + flow rate + lamp condition

This is why there is no reliable universal rule such as:

“X watts of UV per 100 litres.”

Tank volume is useful for sizing, but it does not tell us the actual UV dose delivered.

Why Flow Rate Matters So Much

This is one of the most important things to understand about UV-C.

UV dose is broadly determined by:

UV intensity × exposure time

If water passes through a UV chamber very quickly, microorganisms spend less time exposed to the UV-C.

Reduce the flow and exposure time increases.

So:

Higher flow → shorter exposure

Lower flow → longer exposure

But this does not mean we should simply make the flow as slow as possible.

The UV also needs to process enough aquarium water.

If a UV treats only a very small amount of water each hour, each pass may receive a strong dose, but much of the aquarium water may take a long time to reach the UV.

Effective UV operation therefore balances two things:

sufficient dose per pass + sufficient water turnover

Why the Same UV-C Can Have Different Flow Ratings

This is where good manufacturer specifications become useful.

Different organisms can require different UV doses.

A flow rate suitable for controlling suspended algae may therefore be too fast for a manufacturer’s higher-dose microbial or protozoan-control target.

For example, Pentair's 25-watt SMART UV has been cited with substantially different suggested flows depending on the treatment target: roughly 472 gallons per hour for algae/bacteria control versus 79 gallons per hour for protozoa control.

It is the same UV unit.

What changed is the exposure required for the intended target.

This is why a product specification might legitimately show something like:

The exact numbers cannot be transferred from one UV-C model to another. Chamber design and UV output differ.

Always use the manufacturer's flow specification for the specific model and intended treatment.

What If the UV-C Only Says “Suitable for 300 Litres”?

This is common with simpler aquarium UV products.

You may see:

9 W — suitable for aquariums up to 300 L

That tells us something about the manufacturer's intended aquarium size, but it does not tell us everything about treatment performance.

For more meaningful assessment, look for information such as:

• recommended operating flow;

• UV dose at that flow;

• treatment purpose;

• lamp type and output;

• recommended aquarium or pond volume.

If none of these are provided, we should not automatically conclude that the UV-C does nothing.

It may still be perfectly useful for controlling green water.

What we cannot do is confidently assume that it provides the same microbial reduction as another UV system simply because both have similar wattage.

Where Should UV-C Be Installed?

For an enclosed inline unit, UV-C generally benefits from receiving relatively clean water.

A common arrangement is:

Aquarium → mechanical filtration → biological filtration → UV-C → aquarium

The exact arrangement varies according to the filtration system and manufacturer's instructions, but placing UV after effective mechanical filtration has an advantage.

Particles in dirty water can absorb, scatter or shield microorganisms from UV radiation.

Fluval, for example, recommends installing its inline UV-C clarifier on the output of the canister filter so that filtered water reaches the UV chamber.

The principle is simple:

Cleaner water allows UV-C to reach its target more effectively.

Will UV-C Kill Your Beneficial Bacteria?

This question needs an important distinction.

In an established aquarium, most nitrifying bacteria are attached to surfaces:

• biological filter media;

• substrate;

• rocks;

• aquarium surfaces;

• plants and other structures.

They are not all continuously floating through the water.

An enclosed inline UV-C therefore does not normally destroy an established biological filter. It treats organisms carried through its chamber, while the biofilm living inside the filter remains outside the irradiation zone.

But UV-C itself does not know the difference between a bacterium we consider beneficial and one we do not.

If bacteria pass through a sufficiently effective UV chamber, they can be affected.

And this becomes particularly important with exposed UV-C lamps.

Do Not Shine an Exposed UV-C Lamp Directly Onto Biological Media

If a bare UV-C tube is installed beside your filter media, the bacteria living on the exposed surfaces are now inside the irradiation zone.

Porous media will create shadows, so UV-C will not magically sterilise the entire block of media.

But deliberately irradiating your biological filter is unnecessary and poor placement.

Shield the biological media from direct UV-C exposure.

Exposed UV-C Requires Much More Care

An enclosed UV-C chamber solves an important problem: it prevents the lamp from irradiating everything around it.

With an exposed lamp, you must create that protection yourself.

Direct UV-C exposure can injure human skin and eyes. Germicidal UV-C can cause skin burns and painful eye injury known as photokeratitis.

Do not look directly at an operating germicidal UV-C lamp.

More importantly, don't rely on:

“I just won't look at it.”

An exposed UV-C installation should be designed so the radiation is properly contained.

A useful rule is:

If you can directly see the operating UV-C lamp from outside its intended enclosure, reconsider the installation.

An exposed lamp used in a sump should be isolated within an appropriate opaque UV-resistant enclosure or compartment that prevents UV-C from escaping toward people, livestock and equipment outside the intended treatment zone.

Power should be switched off before opening or servicing that area.

Never expose fish or other aquarium livestock directly to a germicidal UV-C lamp.

UV-C Can Also Damage Materials

There is another reason not to place an exposed UV-C lamp casually inside an equipment-filled sump.

UV radiation can degrade susceptible polymers over time.

Depending on the material, prolonged exposure can contribute to:

• discolouration;

• brittleness;

• cracking;

• loss of mechanical strength.

Around an aquarium this can potentially include susceptible:

• electrical cable insulation;

• suction cups;

• rubber components;

• tubing;

• plastic housings;

• seals and other polymer parts.

This does not mean every plastic immediately fails under UV-C. Material formulation, UV wavelength, intensity and exposure time all matter, and some UV equipment uses specifically UV-resistant materials.

The practical lesson is simpler:

Do not assume ordinary aquarium plastics, cables and rubber components are designed for continuous direct UV-C exposure.

A properly designed enclosed UV steriliser confines the UV-C to materials intended to be exposed to it.

The Lamp Can Still Glow and Be Due for Replacement

A UV-C lamp does not have to become completely dark before its useful germicidal performance declines.

UV-C output decreases as the lamp ages.

That means:

Visible light does not prove that the lamp is still producing its original UV-C output.

Lamp replacement should therefore be based on the manufacturer's operating-hour recommendation, not simply whether the lamp still switches on.

And these recommendations differ.

Pentair recommends replacing standard SMART UV lamps after approximately 9,000 operating hours, while some of its high-output lamps are rated for replacement after 12,000 hours. Aqua Ultraviolet recommends replacing lamps in some of its systems after 14 months of continuous operation.

There is therefore no universal rule that every aquarium UV lamp must be changed at exactly six months or one year.

Follow the replacement interval for the actual lamp and UV-C system you are using.

Don't Forget the Quartz Sleeve

The lamp is only part of the system.

In many enclosed UV-C units, a quartz sleeve separates the lamp from the water while allowing UV-C to pass through.

Over time the sleeve can develop:

• mineral deposits;

• biofilm;

• staining;

• other deposits.

These reduce the amount of UV reaching the water.

So even with a relatively new lamp:

Dirty quartz sleeve → less useful UV transmission

Routine UV-C maintenance should therefore include checking the lamp, cleaning the quartz sleeve as specified by the manufacturer, inspecting seals and O-rings, checking for leaks and confirming that water flow has not changed substantially.

Should UV-C Run 24 Hours a Day?

UV-C systems are commonly designed for continuous operation when continuous clarification or microbial reduction is wanted.

However, there are situations when UV-C may need to be switched off.

One important example is medication.

Some medications can be affected by UV exposure. Fluval, for example, recommends switching its UV-C clarifier off while medicating because UV-C can reduce the effectiveness of some medications.

Always follow the instructions for both the medication and UV equipment being used.

The same caution is sensible when adding live microbial products. If the objective is to introduce free-floating bacteria and allow them time to reach and colonise surfaces, immediately sending that suspension through an effective UV-C treatment chamber may work against that objective. Follow the bacterial product and UV manufacturer's instructions where available.

Clarifier or Steriliser?

The words printed on the box can sometimes cause confusion.

A UV clarifier is commonly positioned primarily for controlling suspended algae and improving water clarity.

A UV steriliser is generally expected to provide a more meaningful level of microbial treatment under specified operating conditions.

But the name alone is not enough.

A product marketed as a steriliser running at excessive flow may deliver a lower dose than intended.

A well-designed UV system operated at an appropriate flow can deliver a much higher dose.

When microbial control matters, look beyond the name and ask:

What UV dose does this unit provide at the specified flow rate?

That is much more informative than simply reading its wattage.

What UV-C Cannot Replace

UV-C can be extremely useful, but it is still only one part of an aquarium system.

It does not replace:

• mechanical filtration;

• biological filtration;

• good circulation;

• appropriate stocking;

• water changes;

• quarantine;

• disease diagnosis and treatment;

• regular aquarium maintenance.

If the aquarium continuously produces excessive suspended bacteria, algae or organic waste, UV-C may reduce one symptom without correcting the underlying cause.

The best use of UV-C is therefore alongside good filtration and husbandry, not instead of them.

Choosing the Right UV-C for Your Aquarium

Before buying a UV-C unit, ask four questions:

1. What am I trying to achieve?
Green-water clarification, general microbial reduction and higher-dose pathogen-management applications are not necessarily the same requirement.

2. What flow does the manufacturer recommend for that purpose?
Do not assume the pump's maximum flow is the correct UV treatment flow.

3. Is the UV-C properly enclosed?
If using an exposed lamp, you need a safe way to isolate UV-C from people, livestock, biological media and vulnerable equipment.

4. Can I maintain it properly?
Lamp replacement, quartz-sleeve cleaning and stable water flow are part of UV performance.

A UV-C unit is not effective simply because a UV lamp is switched on somewhere in the filtration system.

The lamp, chamber, water clarity, flow rate and maintenance work together to determine the UV dose that actually reaches organisms in the water.

Once you understand that, choosing and using UV-C becomes much easier.
